Switchgear Products
In an electric power system, switchgear is used to control, protect and isolate electrical equipment. Switchgear is used both to de-energize equipment to allow work to be done and to clear faults downstream. This type of equipment is directly linked to the reliability of the electricity supply. By the early 20th century, a switchgear line-up would be a metal-enclosed structure with electrically operated switching elements, using oil circuit breakers. Today, oil-filled equipment has largely been replaced by air-blast, vacuum, or SF6 equipment, allowing large currents and power levels to be safely controlled by automatic equipment. The technology has been improved over time and can now be used with voltages up to 1,100 kV.
We have widest choice of MV to UHV Switchgear products, including Gas Insulated Switchgear (GIS) and Dead Tank Circuit Breaker (DTB, apart from Low Voltage Panels to meet the requirements of power generation and distribution substation in utilities and industries. A wide choice of products designed and test compliance as per IEC, IS, ANSI, CSA, ENA, GB and other international standards.
PRODUCT RANGE:-

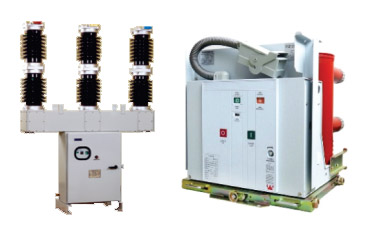

Vacuum Circuit Breakers (VCB)–
one of the largest manufacturers for Outdoor Type up to 36kV, 2000A, 40kA and Indoor Type up to 40.5kV, 4000A, 50kA Vacuum Circuit Breaker. These VCBs designed to provide compact, reliable switching & protection solution for MV distribution system.
Gas Circuit Breakers –
one of the largest manufacturers of SF gas 6 circuit breakers (GCB) with range of Indoor Type GCB upto 36kV, 2000A, 40kA and Outdoor Type GCB up to 765kV, 4000A, 50kA.

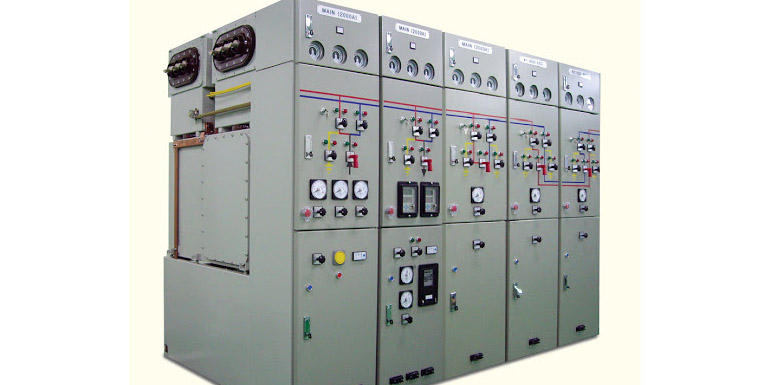

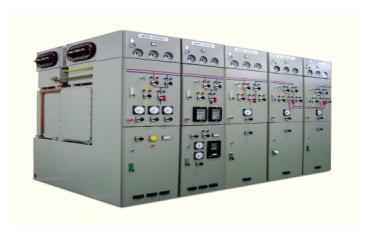

Gas Insulated Switchgear -
as the World is moving towards highly compact and reliable power Transmission and Distribution equipment, GIS is emerging as the best solution for Power Transmission and Distribution. We offer the latest technology GIS. Together with complete conventional solutions, the use of digital protection and control technology, sensor systems and plug - in connections make it suitable for NextGen. The GIS comes with flexible SF gas-insulated modules of various Equipment to 6 suit different network configurations up to 300kV, 4000A, 50kA as per IEC, ANSI, IS International Standards.

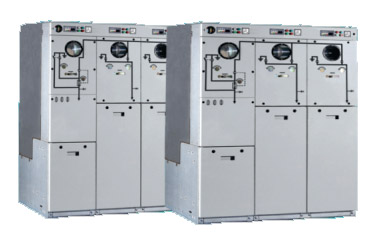

Ring Main Units
is a factory assembled, metal enclosed set of switchgear used at the load connection points of a ring-type distribution network especially used in underground cable distribution network. Ring main units can be characterized by their type of insulation - air, oil or gas. Our RMU Product range is up to 36kV, suitable for Indoor and Outdoor installation, designed using latest technology, Compact, Easy in Installation & Operation; easily integration with automation/SCADA network.

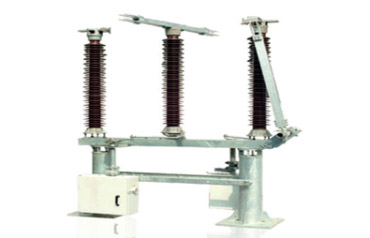

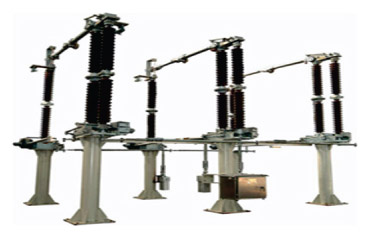

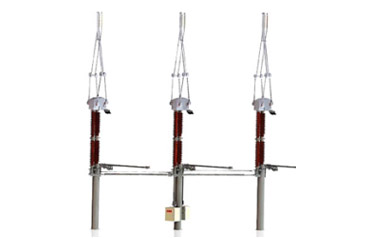

Disconnector Switch/Isolators –
a disconnector, disconnect switch or isolator switch is used to ensure that an electrical circuit is completely de-energized for service or maintenance. Such switches are often found in electrical distribution and industrial applications, where machinery must have its source of driving power removed for adjustment or repair. High-voltage isolation switches are used in electrical substations to allow isolation of apparatus such as circuit breakers, transformers, and transmission lines, for maintenance. The disconnector is usually not intended for normal control of the circuit, but only for safety isolation. Disconnectors can be manual or motor operated.
We are broadest range of Disconnector (Double Break, Centre Break, Pantograph, Knee Type, Vertical Break, Horizontal Break, Grounding Switch, Motor operative mechanism, etc.) supplier in the World with products ranging from 11kV to 765kV Disconnectors, Railway Traction Switches, Fuses, Earthing Switches, Bus Transfer Contacts, and Motor Operating Mechanisms, used in various service areas, ranging from Testing Labs, Transmission Grids, Generation Yards, Industrial Customers.
Line Trap/Wave Trap -
Line traps are used in transmission and distribution networks around the World. Line traps are a vital component in PLC (Power Line Carrier) systems used for remote control signals, voice communication, remote metering, and control between substations in the electrical T&D network. Our manufacturer unit has extensive experience in designing and supplying line traps for system voltages up to 800 kV.
